Ducati Street Fighter 848 SSB Crash Guards

for Ducati Streetfighter 848

This time, I made SSB for Street Fighter 848.



I had built a Ducati SSB before, but unlike the air-cooled Ducati, the engine was tightly packed inside the frame.
The U-shaped bolt does not fit in, the radiator hose gets in the way, and although it is the same as air cooling, the main frame bolt is far behind.
It took me a while to come up with the structure.

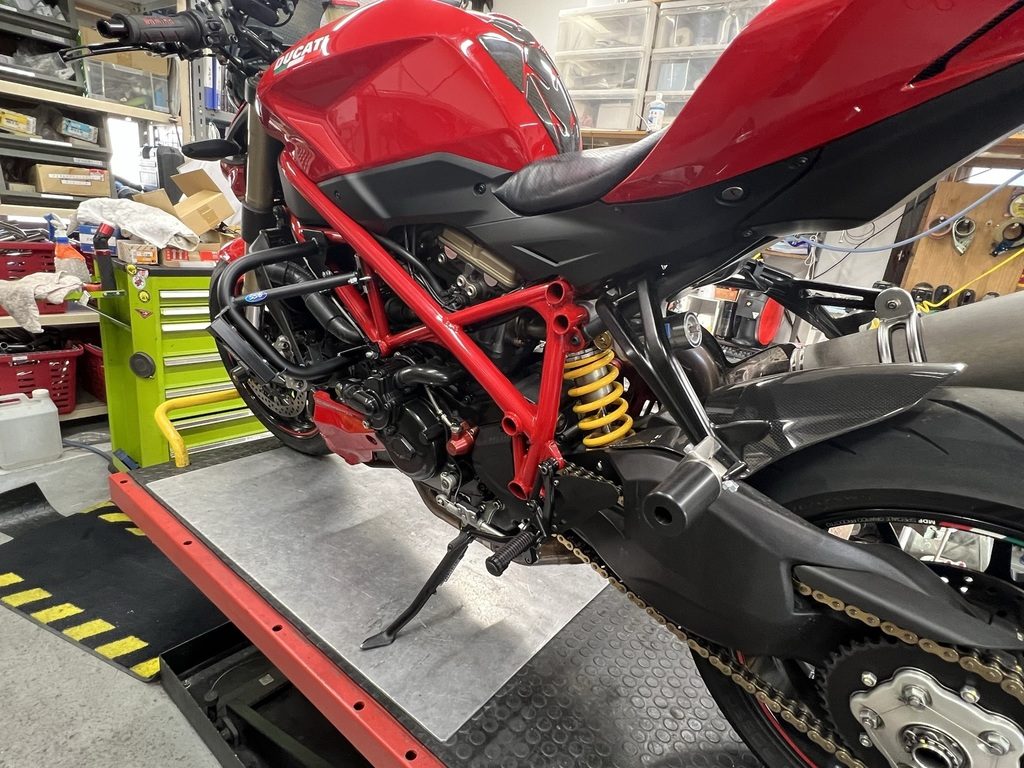

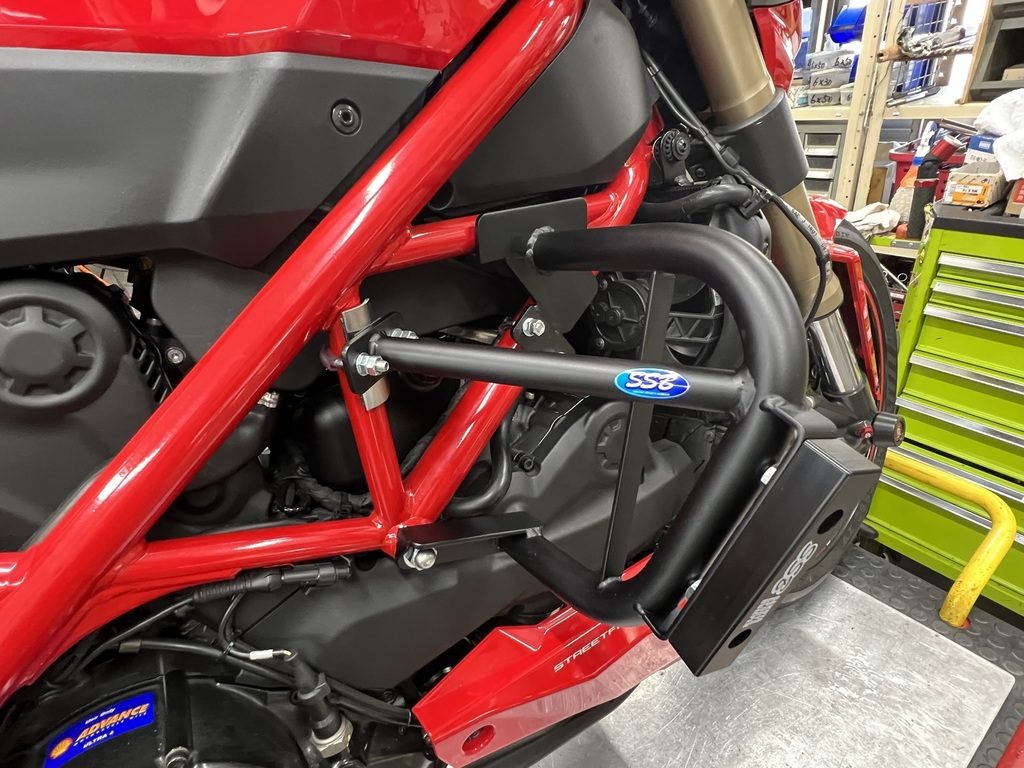

IMG_4038.jpeg IMG_4041.jpeg IMG_4042.jpeg
The structure was devised to achieve both height and strength, but it seems that there are some parts that cannot be understood until it actually falls.
Just in case, it is safer to have the SSB slider α.



This bumper is a one-off.
It is a report that a bumper with such a structure has also been completed.

https://ssbfactory.seesaa.net/article/497999808.html
